Stock Code |
|
15M1530
|
|
Part Number
|
|
0T49928EC
|
|
Description
|
|

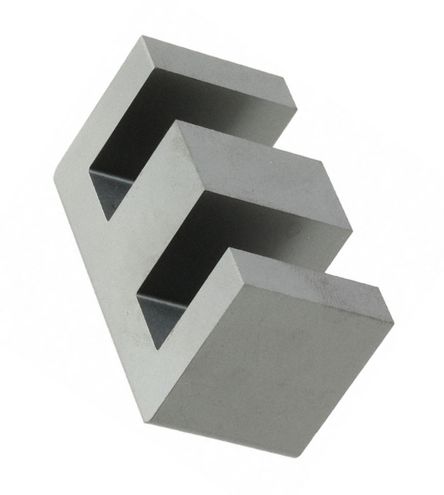

MAGNETIC E CORE
|
|
Manufacturer
|
|
MAGNETICS
|
|
Sold In
|
|
Each
|
|
Minimum Order Qty
|
|
1.00
|
|
Alternate Part Number
|
|
|
|
Memo
|
|
SHAPE (E), MATERIAL (T), AL INDUCTANCE = 9010 nH/T2, OD / LENGTH = 100.3MM, ID / LEG LENGTH = 59.4MM, HT / HEIGHT = 27.5.MM, VE VOLUME = 202000MM3, LE PATH LENGTH = 274MM, AE CROSS SECTION = 738MM2, WaAc = 156, E CORES = 40MM-100MM.
|
|
|
|
|
|
|
|
|
|
